What are the core accessories of 3D printers?

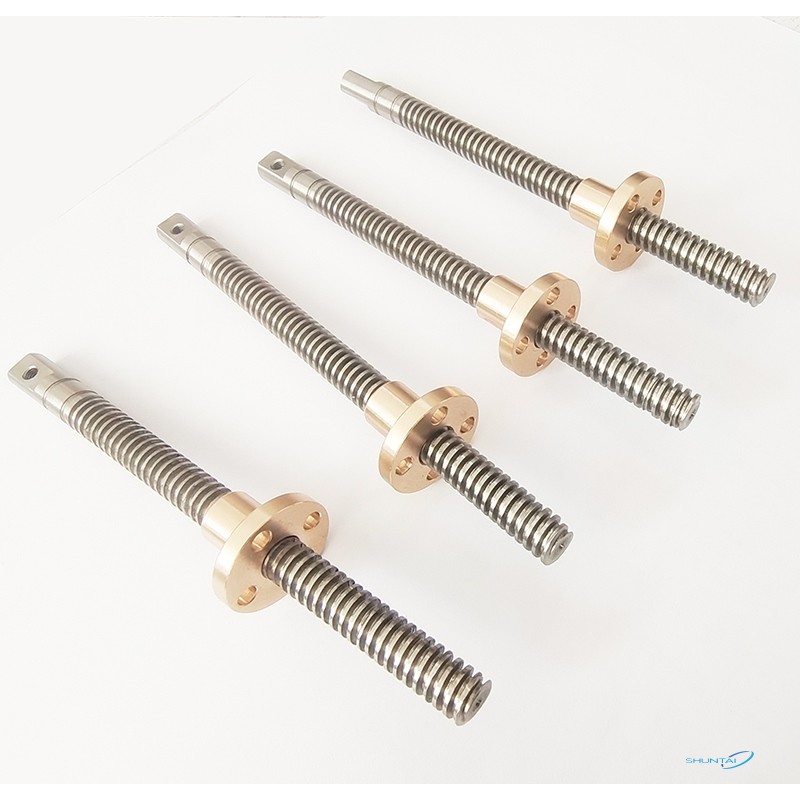

Trapezoidal lead screw is a common mechanical transmission element, named because of its trapezoidal thread cross section. In 3D printers, trapezoidal lead screw plays a key role in converting rotational motion into linear motion. Compared with ordinary threads, trapezoidal threads have higher load-bearing capacity and better self-locking characteristics, which makes it particularly suitable for applications that require precise positioning and certain axial loads.

The working principle of the trapezoidal lead screw is based on the basic physical principle of spiral transmission: when the lead screw rotates, the nut moves along the axial direction of the lead screw, and the moving distance is proportional to the lead of the thread and the number of rotations. This precise linear motion conversion mechanism is one of the foundations for 3D printers to achieve high-precision printing.

Advantages of trapezoidal lead screw in 3D printers

In 3D printing technology, trapezoidal lead screw has many significant advantages over other transmission methods:

High-precision positioning capability: The trapezoidal lead screw can provide higher positioning accuracy, with a typical value of ±0.1mm or higher, which is crucial to printing quality.

Good self-locking performance: The design of the trapezoidal thread allows it to naturally maintain its position when not driven, reducing the risk of the Z axis falling when the power is off or the motor is not working.

Higher load capacity: Compared with belt drive or ordinary threaded rod, trapezoidal screw can withstand greater axial loads and is suitable for supporting the weight of the printing platform and print head.

Smooth motion characteristics: Trapezoidal screw drive reduces vibration and jump, which helps to improve the quality of the printed surface.

High cost performance: Compared with ball screw, trapezoidal screw is lower in cost and can meet the accuracy requirements of most consumer-grade 3D printers.

Typical applications of trapezoidal screw in 3D printers

In the structure of 3D printers, trapezoidal screw is mainly used in the following key parts:

Z-axis lifting system: Most FDM/FFF 3D printers use trapezoidal screws to control the precise movement of the printing platform or print head in the Z-axis direction. Since the Z-axis needs to be highly stable and bear a certain load, the trapezoidal screw becomes an ideal choice.

Some specially designed X/Y axes: Although most modern 3D printers use belt drives on the X/Y axes to achieve higher speeds, some models that focus on accuracy rather than speed also use trapezoidal screws on these axes.

Extrusion mechanism: In some direct-drive extruders, trapezoidal screws can be used to precisely control the advancement of filaments.

Technical parameter selection of trapezoidal screws

When choosing a trapezoidal screw for a 3D printer, you need to consider the following key parameters:

Pitch: refers to the distance the nut moves when the screw rotates one circle. Common ones are 2mm, 4mm, 8mm, etc. Smaller pitches provide higher resolution but slower speeds.

Diameter: Usually 6mm, 8mm, 10mm or 12mm. Larger diameters provide better stiffness and load capacity.

Thread type: standard trapezoidal thread (such as Tr8×2) or specially designed thread.

Material: Usually carbon steel or stainless steel, stainless steel is more corrosion-resistant but more expensive.

Accuracy level: 3D printers usually require C7 or higher precision screws.

Length: Select an appropriate length based on the printer's Z-axis travel requirements, generally slightly larger than the maximum printing height.

Installation and maintenance of trapezoidal lead screw

Proper installation and maintenance are essential to ensure the performance and life of trapezoidal lead screw:

Installation points:

Ensure that the lead screw is parallel to the guide system (such as linear guide)

Use appropriate support bearings to reduce radial loads

Fix both ends firmly but not too tight to avoid stress

Use couplings to connect the motor and the lead screw to compensate for minor misalignments

Maintenance recommendations:

Clean the lead screw regularly to remove dust and printing residues

Proper lubrication (use special grease or lubricating oil)

Check the wear of the nut and replace the worn parts in time

Avoid deformation caused by over-tightening

Comparison of trapezoidal lead screw and ball screw

For most consumer-grade 3D printers, trapezoidal lead screws provide a good price-performance balance. Industrial or high-end printers may prefer to use ball screws for higher accuracy and speed.

Future development trend of trapezoidal lead screw

As 3D printing technology continues to develop, trapezoidal lead screws are also continuously improving:

Material innovation: The application of new composite materials and high-performance alloys improves the wear resistance and life of the lead screw.

Manufacturing process advancement: Precision grinding and special coating technologies improve the accuracy and surface quality of the lead screw.

Integrated design: Some new designs integrate the lead screw with guide rails or other functions to simplify installation and improve system rigidity.

Intelligent monitoring: Built-in sensors monitor the status of the lead screw and predict maintenance needs.

Conclusion

As a key transmission component in 3D printers, the trapezoidal lead screw has a direct impact on printing accuracy and quality. Understanding its working principle, selection criteria and maintenance requirements can help 3D printer users and designers optimize machine performance. With the advancement of material science and manufacturing technology, the trapezoidal lead screw will continue to play an important role in the field of 3D printing, balancing performance and cost, and promoting the development of 3D printing technology to a wider range of applications.
